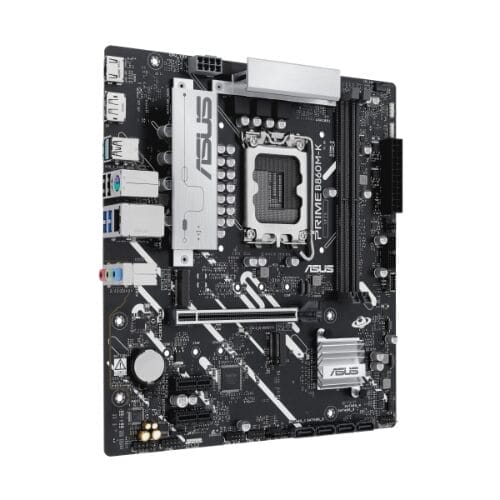

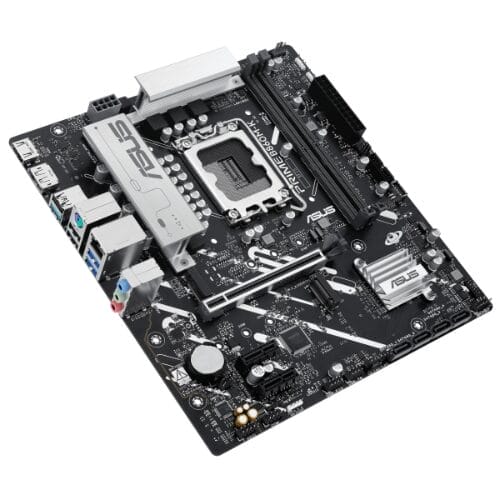

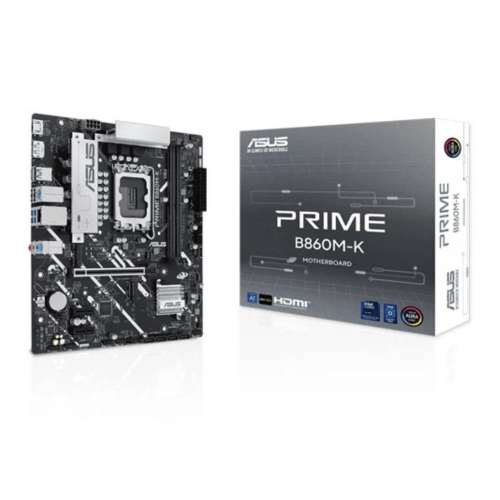

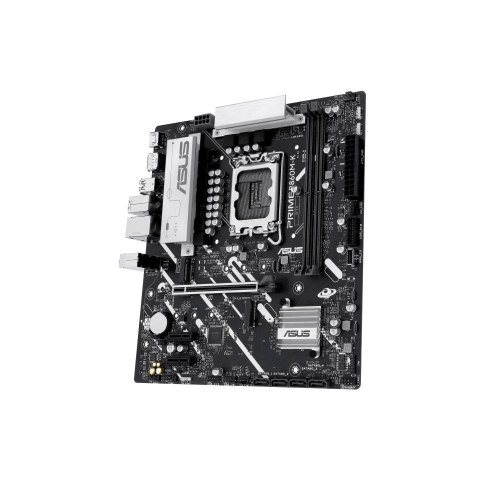

ASUS Prime B860M-K LGA 1851 Micro-ATX Motherboard LGA 1851 Micro-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 4.0 x16 Slot 2x M.2 Slots
222.00 USD
ASUS Prime B860M-K LGA 1851 Micro-ATX Motherboard LGA 1851 Micro-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 4.0 x16 Slot 2x M.2 Slots
12
People watching this product now!
Description
ASUS Prime B860M-K LGA 1851 Micro-ATX Motherboard LGA 1851 Micro-ATX Motherboard Intel B860 Chipset 2x DIMM DDR5 Slots Up to 128GB Max Memory 1x PCIe 4.0 x16 Slot 2x M.2 Slots
| Category | Specification |
|---|---|
| Model | PRIME B860M-K |
| Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| Memory Slots | 2 × DDR5 DIMM |
| Max Memory | 128GB DDR5 |
| Memory Speed | Up to 8800+ MT/s (OC) |
| Memory Features | Dual Channel, XMP, ASUS AEMP III, Non-ECC |
| Graphics Outputs | 1 × DisplayPort (4K@60Hz) |
| 1 × HDMI (4K@60Hz) | |
| Primary PCIe Slot | 1 × PCIe 4.0 x16 |
| Additional PCIe Slots | 2 × PCIe 4.0 x1 |
| M.2 Slots | 2 × M.2 (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 |
| Ethernet | Realtek 2.5Gb LAN + ASUS LANGuard |
| Rear USB Ports | 1 × USB 10Gbps Type-A |
| 2 × USB 5Gbps Type-A | |
| 3 × USB 2.0 Type-A | |
| Front USB Support | 1 × USB 5Gbps Type-C |
| 2 × USB 5Gbps | |
| 4 × USB 2.0 | |
| Audio | Realtek 7.1 HD Audio (24-bit/192kHz) |

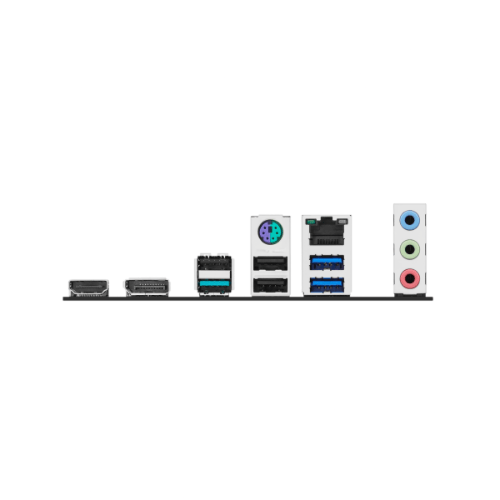

| Back Panel I/O | DisplayPort, HDMI™, 2.5Gb LAN, 3 × Audio jacks, PS/2 combo |
| Internal Headers | Fan, Power, SATA, USB, RGB, System Panel |
| Special Features | ASUS 5X Protection III |
| Q-DIMM, Q-LED Core | |
| Aura Sync (RGB + Addressable Gen2) | |
| Software | Armoury Crate, AI Advisor |
| Norton 360 (60 days), WinRAR (40 days) | |
| BIOS | 256Mb UEFI AMI BIOS |
| Included Accessories | 2 × SATA cables, I/O Shield, M.2 anchor |
| OS Support | Windows 11 / Windows 10 64-bit |
| Form Factor | micro-ATX |
| Dimensions | 9.6″ × 8.75″ (24.4 × 22.2 cm) |
