ASUS PRIME Z890-P ATX motherboard LGA1851 socket DDR5 up to 7600MHz PCIe 5.0 4x M.2 slots Wi-Fi 7 2.5Gb LAN Thunderbolt 4 and AI cooling
333.00 USD
ASUS PRIME Z890-P ATX motherboard LGA1851 socket DDR5 up to 7600MHz PCIe 5.0 4x M.2 slots Wi-Fi 7 2.5Gb LAN Thunderbolt 4 and AI cooling
16
People watching this product now!
Description
ASUS PRIME Z890-P ATX motherboard LGA1851 socket DDR5 up to 7600MHz PCIe 5.0 4x M.2 slots Wi-Fi 7 2.5Gb LAN Thunderbolt 4 and AI cooling
| Category | Specification |
|---|---|
| Model | ASUS PRIME Z890-P |
| Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory | 256GB DDR5 |
| Memory Speed | Up to 8666+ MT/s (OC) |
| Memory Features | Dual Channel, XMP, AEMP III, Non-ECC (On-Die ECC supported) |
| Integrated Graphics Outputs | 1 × DisplayPort (4K@60Hz) |
| 1 × HDMI 2.1 (4K@60Hz) | |
| 1 × USB-C 20Gbps (DP Alt Mode, up to 4K@120Hz) | |
| PCIe Slots | 1 × PCIe 5.0 x16 |
| 2 × PCIe 4.0 x16 (x4 mode) | |
| 1 × PCIe 4.0 x16 (x1 mode) | |
| M.2 Slots | 4 × M.2 (1 × PCIe 5.0 x4, 3 × PCIe 4.0 x4) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (PCIe & SATA) |
| Ethernet | Realtek 2.5Gb LAN |

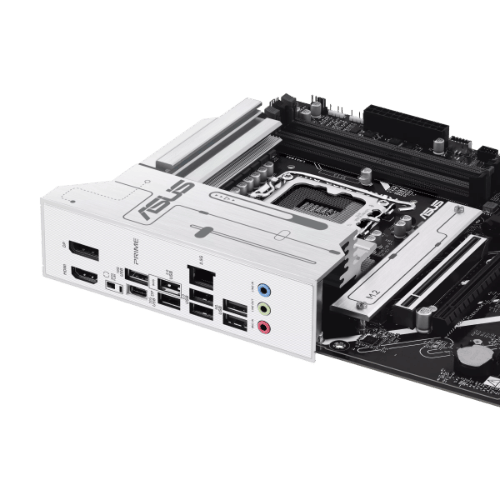

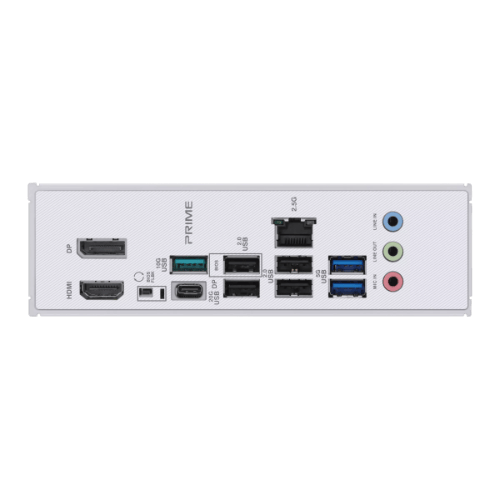

| Rear USB Ports (8 Total) | 1 × USB-C 20Gbps (DP Alt Mode) |
| 1 × USB 10Gbps (Type-A) | |
| 2 × USB 5Gbps | |
| 4 × USB 2.0 | |
| Front USB Support (9 Total) | 1 × USB-C 10Gbps |
| 4 × USB 5Gbps | |
| 4 × USB 2.0 | |
| Audio | Realtek 7.1 HD Audio (24-bit/192kHz) |
| LAN Protection | ASUS LANGuard |
| Cooling Headers | CPU Fan, CPU OPT, AIO Pump, 4 × Chassis Fan |
| Power Connectors | 1 × 24-pin ATX |
| 2 × 8-pin CPU Power | |
| RGB Support | Aura RGB + 3 × Addressable Gen2 Headers |
| BIOS | 256Mb UEFI AMI BIOS |
| Special Features | BIOS FlashBack, M.2 Q-Latch, PCIe Q-Release, Q-LED Core |
| Operating System Support | Windows 11 / Windows 10 (64-bit) |
| Form Factor | ATX |
| Dimensions | 12 × 9.6 in (30.5 × 24.4 cm) |
