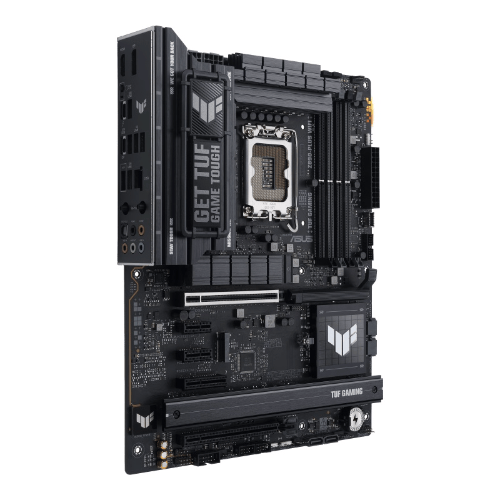

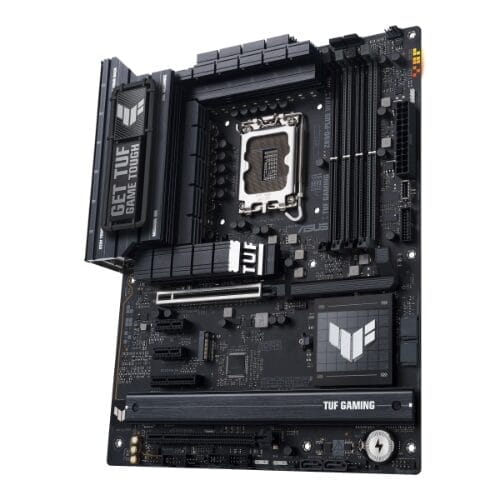

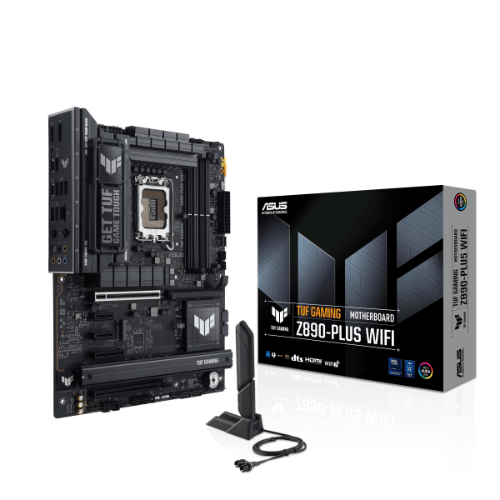

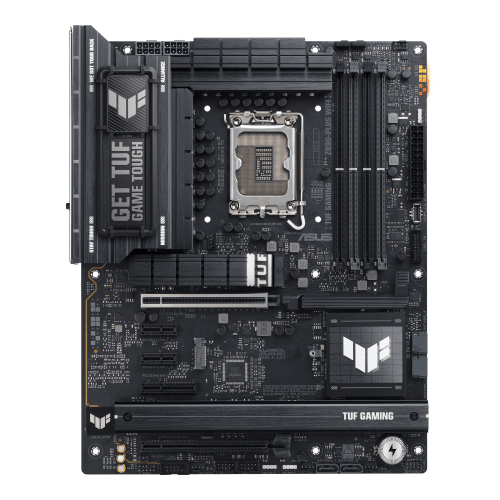

ASUS TUF GAMING Z890-PLUS WIFI ATX motherboard LGA 1851 DDR5 up to 9066MT/s PCIe 5.0 2.5Gb Ethernet Wi-Fi 7 4x M.2 slots
416.00 USD
ASUS TUF GAMING Z890-PLUS WIFI ATX motherboard LGA 1851 DDR5 up to 9066MT/s PCIe 5.0 2.5Gb Ethernet Wi-Fi 7 4x M.2 slots
7
People watching this product now!
Description
ASUS TUF GAMING Z890-PLUS WIFI ATX motherboard LGA 1851 DDR5 up to 9066MT/s PCIe 5.0 2.5Gb Ethernet Wi-Fi 7 4x M.2 slots
| Category | Specification |
|---|---|
| Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory | 256GB DDR5 |
| Memory Speed | Up to 9066+ MT/s (OC) |
| Memory Features | Dual Channel, XMP, AEMP III, Non-ECC (On-Die ECC supported) |
| Primary PCIe Slot | 1 × PCIe 5.0 x16 |
| Additional PCIe Slots | 1 × PCIe 4.0 x16 (x4 mode) |
| 1 × PCIe 4.0 x4 | |
| 2 × PCIe 4.0 x1 | |
| M.2 Slots | 4 × M.2 (1 × PCIe 5.0 x4, 3 × PCIe 4.0 x4/SATA) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (PCIe & SATA) |
| Integrated Graphics Outputs | 1 × DisplayPort (4K@60Hz) |
| 1 × HDMI 2.1 (4K@60Hz) | |
| 1 × Thunderbolt 4 Type-C (up to 8K@60Hz with DSC) | |
| 1 × USB-C 20Gbps (DP Alt Mode, 4K@60Hz) | |
| Ethernet | Intel 2.5Gb LAN + TUF LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2 |
| Bluetooth | Bluetooth 5.4 |

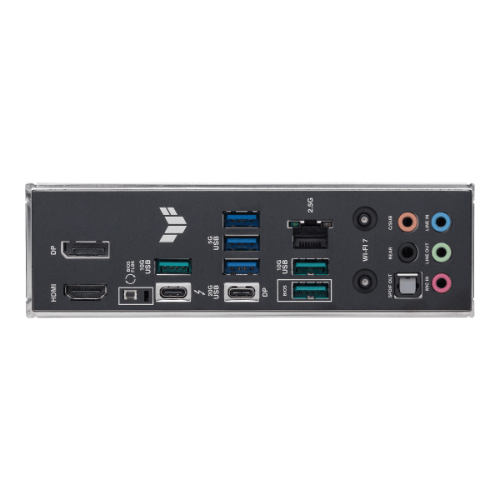

| Rear USB Ports (8 Total) | 1 × Thunderbolt 4 Type-C |
| 1 × USB 20Gbps Type-C | |
| 3 × USB 10Gbps Type-A | |
| 3 × USB 5Gbps Type-A | |
| Front USB Support (7 Total) | 1 × USB-C 20Gbps |
| 2 × USB 5Gbps | |
| 4 × USB 2.0 | |
| Audio | Realtek ALC1220P 7.1 HD Audio (Optical S/PDIF, 120dB SNR) |
| Cooling Headers | CPU Fan, CPU OPT, AIO Pump, 4 × Chassis Fan |
| Power Connectors | 1 × 24-pin ATX |
| 2 × 8-pin CPU Power | |
| RGB Support | 3 × Addressable Gen 2 Headers (Aura Sync) |
| BIOS | 256Mb UEFI AMI BIOS |
| Special Features | BIOS FlashBack, M.2 Q-Latch/Q-Release/Q-Slide, PCIe Q-Release, Q-LED, SafeSlot |
| Networking Features | WOL, PXE |
| Operating System Support | Windows 11 (22H2 & later) |
| Form Factor | ATX |
| Dimensions | 12 × 9.6 in (30.5 × 24.4 cm) |
