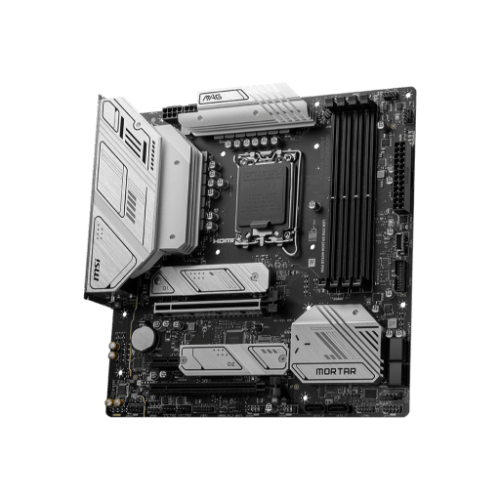

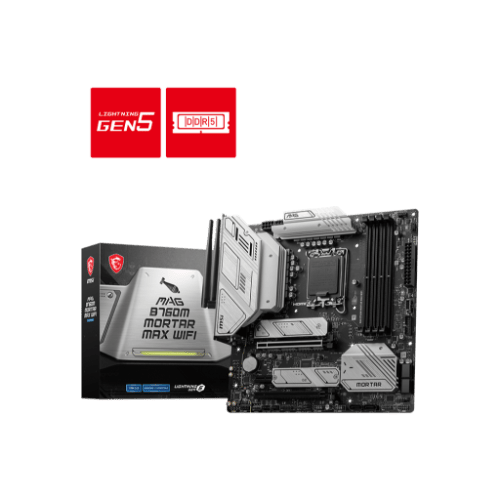

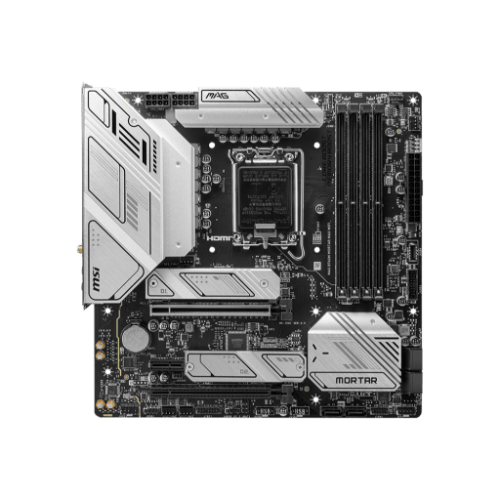

MSI mag B760M mortar max wifi
335.00 USD
MSI mag B760M mortar max wifi
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for the LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- OC Engine: With the clock generator, the OC Engine technology releases the maximum power of the CPU.
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server-grade level material
5
People watching this product now!
Description
MSI mag B760M mortar max wifi
| Category | Details |
|---|---|
| Chipset | INTEL B760 |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Intel® Pentium® Gold, Intel® Celeron® Processors |
| Socket | LGA1700 |
| Memory | 4× DDR5, up to 256GB |
| Memory Speeds | 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz |
| Max Overclocking Frequency | • 1DPC 1R: up to 7200+ MHz• 1DPC 2R: up to 6600+ MHz• 2DPC 1R: up to 6400+ MHz• 2DPC 2R: up to 5600+ MHz |
| Memory Features | Dual-Channel, non-ECC unbuffered memory, Intel® XMP support |
| Onboard Graphics | 1× HDMI™ (2.1, 4K@60Hz)1× DisplayPort (DP 1.4, 8K@60Hz)*Requires CPU with integrated graphics |
| Expansion Slots | 2× PCIe x16 (x16 / x4)1× PCIe x1 |
| PCIe Breakdown | PCI_E1: PCIe 5.0 ×16 (CPU)PCI_E2: PCIe 3.0 ×1 (Chipset)PCI_E3: PCIe 4.0 ×4 (Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel, S/PDIF Out |
| Storage | 2× M.2:• M.2_1: PCIe 4.0 ×4 (CPU), 2280/2260/2242• M.2_2: PCIe 4.0 ×4 / SATA (Chipset), 2280/2260/22426× SATA 6Gb/s |
| RAID | RAID 0 / 1 / 5 / 10 for SATA devices (SATA_A1_A2 do not support RAID) |

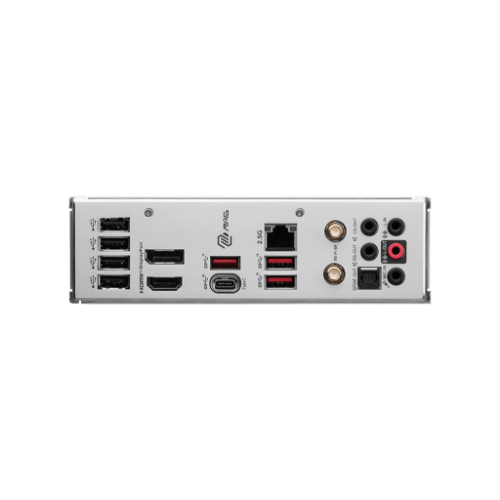

| USB Ports | Rear: 4× USB 2.0, 3× USB 10Gbps Type-A, 1× USB 20Gbps Type-CFront: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| LAN | Realtek® 2.5Gbps LAN |
| Wireless LAN & Bluetooth | Intel® Wi-Fi 6E (2.4/5/6 GHz), MU-MIMO, up to 2.4GbpsBluetooth® 5.3Availability depends on OS and regional regulations |
| Internal I/O | 1× ATX_PWR2× CPU_PWR1× CPU Fan1× Pump Fan4× System Fan2× Front Panel (JFP)1× Chassis Intrusion1× JAUD1× JDASH (Tuning Controller)2× JARGB_V21× JRGB1× TPM Header4× USB 2.0 ports2× USB 5Gbps Type-A ports1× USB 10Gbps Type-C port |
| LED Feature | 4× EZ Debug LED |
Additional information
| Brand | MSI |
|---|
