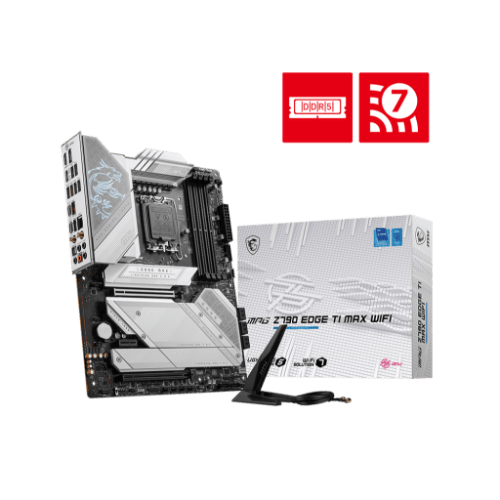

MSI Mpg Z790 edge ti max wifi
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
5
People watching this product now!
Description

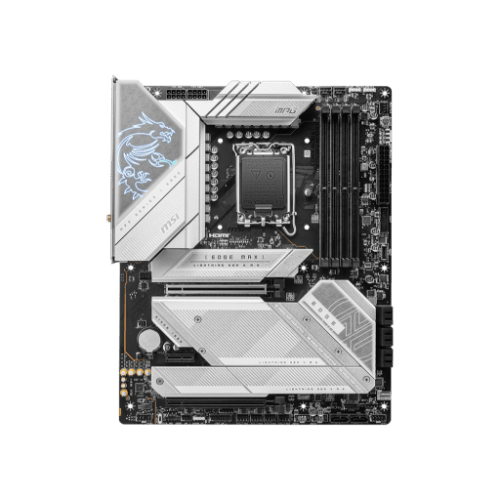

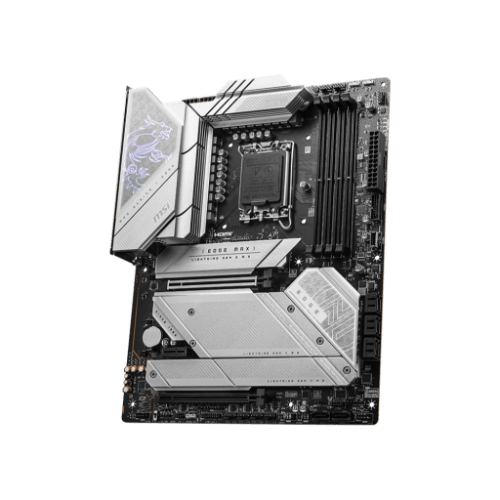

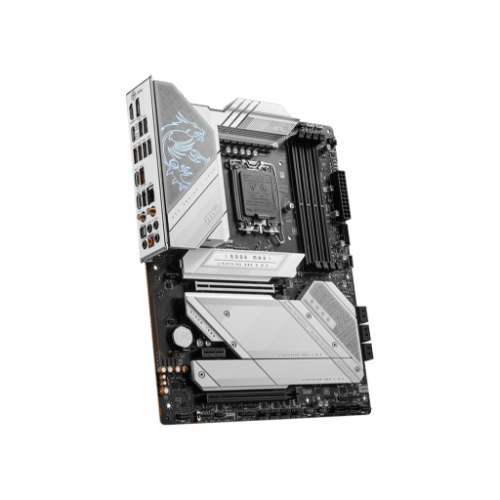

MSI Mpg Z790 edge ti max wifi
| Category | Details |
|---|---|
| Chipset | Intel® Z790 |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Intel® Pentium® Gold, Intel® Celeron® |
| Socket | LGA 1700 |
| Memory | 4× DDR5, up to 256GB |
| Memory Speeds | 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz |
| Max OC Frequency | • 1DPC 1R → 7800+ MHz• 1DPC 2R → 6600+ MHz• 2DPC 1R → 6400+ MHz• 2DPC 2R → 5600+ MHz |
| Memory Features | Intel® XMP 3.0 OC, Dual-Controller Dual-Channel, non-ECC unbuffered |
| Onboard Graphics | HDMI™ 2.1 (4K 60Hz)DisplayPort 1.4 (8K 60Hz)*Only with CPUs featuring integrated graphics |
| PCIe Expansion Slots | 2× PCIe x161× PCIe x1 |
| PCIe Lanes | PCI_E1: PCIe 5.0 ×16 (CPU)PCI_E2: PCIe 3.0 ×1 (Chipset)PCI_E3: PCIe 4.0 ×4 (Chipset)Note: PCI_E1 becomes Gen5 ×8 if M.2_1 is populated |
| Audio | Realtek® ALC4080, 7.1 USB High-Performance AudioUp to 32-bit/384 kHz playback (front panel) |
| Storage | 5× M.2:• M.2_1: PCIe 5.0 ×4 (CPU), 22110/2280/2260• M.2_2: PCIe 4.0 ×4 (Chipset), 2280/2260• M.2_3: PCIe 4.0 ×4 / SATA, 2280/2260/2242• M.2_4: PCIe 4.0 ×4, 2280/2260/2242• M.2_5: PCIe 4.0 ×4, 2280/22608× SATA 6Gb/sSATA_1 & SATA_2 disabled with M.2 SATA SSD in M.2_3 |
| RAID Support | SATA: RAID 0/1/5/10 (except SATA_A1 ~ A2)M.2 NVMe: RAID 0/1/5/10 |

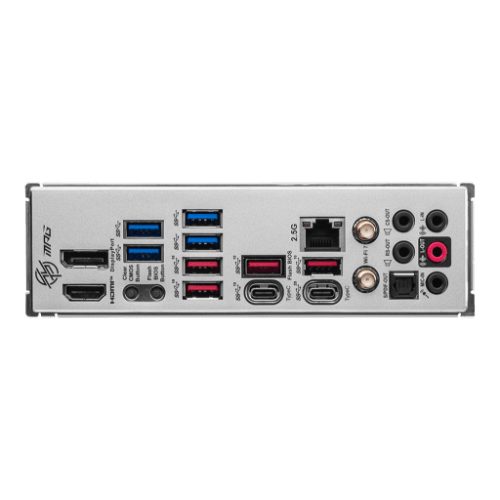

| USB Ports | Rear:• 4× USB 5Gbps Type-A• 4× USB 10Gbps Type-A• 1× USB 10Gbps Type-C• 1× USB 20Gbps Type-CFront:• 4× USB 2.0• 2× USB 5Gbps Type-A• 1× USB 10Gbps Type-C |
| LAN | Intel® 2.5Gbps LAN |
| Wireless / Bluetooth | Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps)Bluetooth® 5.4 (depends on OS/vendor updates)Supports MU-MIMO, MLO, 4K QAM |
| Internal I/O | 1× ATX_PWR2× CPU_PWR5× System Fan1× EZ Connect Header (JAF_1)2× Front Panel (JFP)1× JCI1× JAUD1× JDASH3× JARGB_V21× JRGB1× TPM 2.0 Header1× USB4 Card Connector (JTBT_U4_1, RTD3)4× USB 2.0 Ports2× USB 5Gbps Type-A Ports1× USB 10Gbps Type-C Port |
| LED / Diagnostics | 4× EZ Debug LED1× EZ LED Control Switch |
Additional information
| Brand | MSI |
|---|
