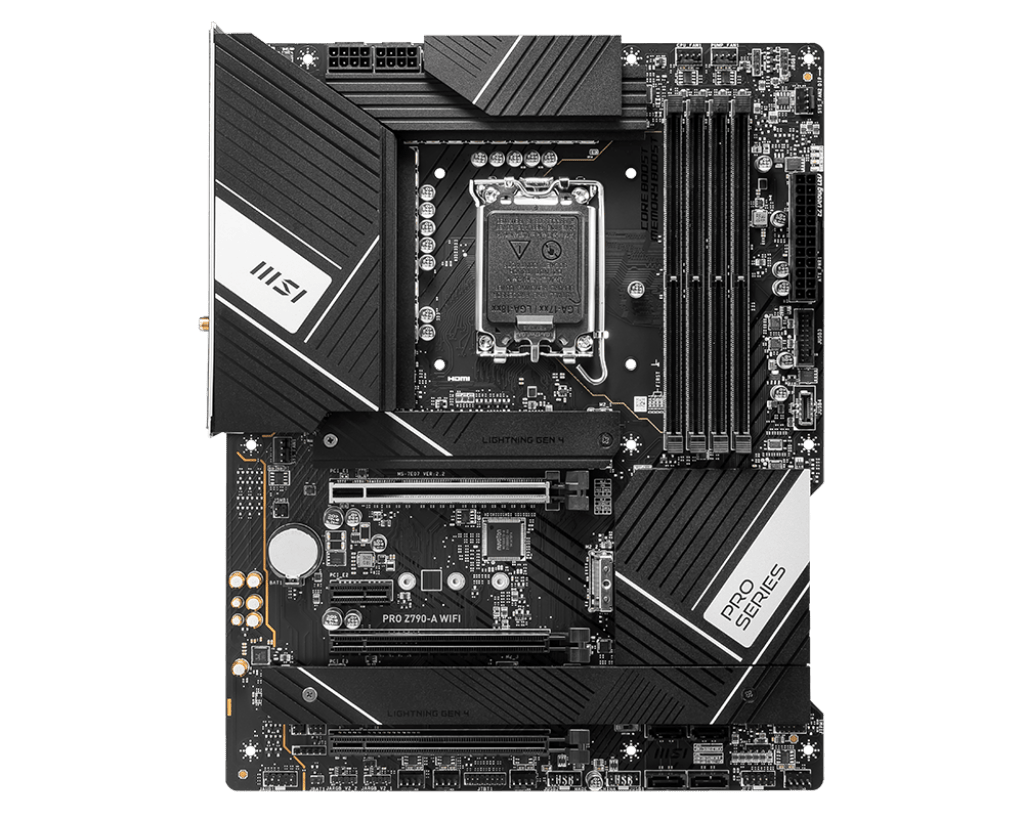

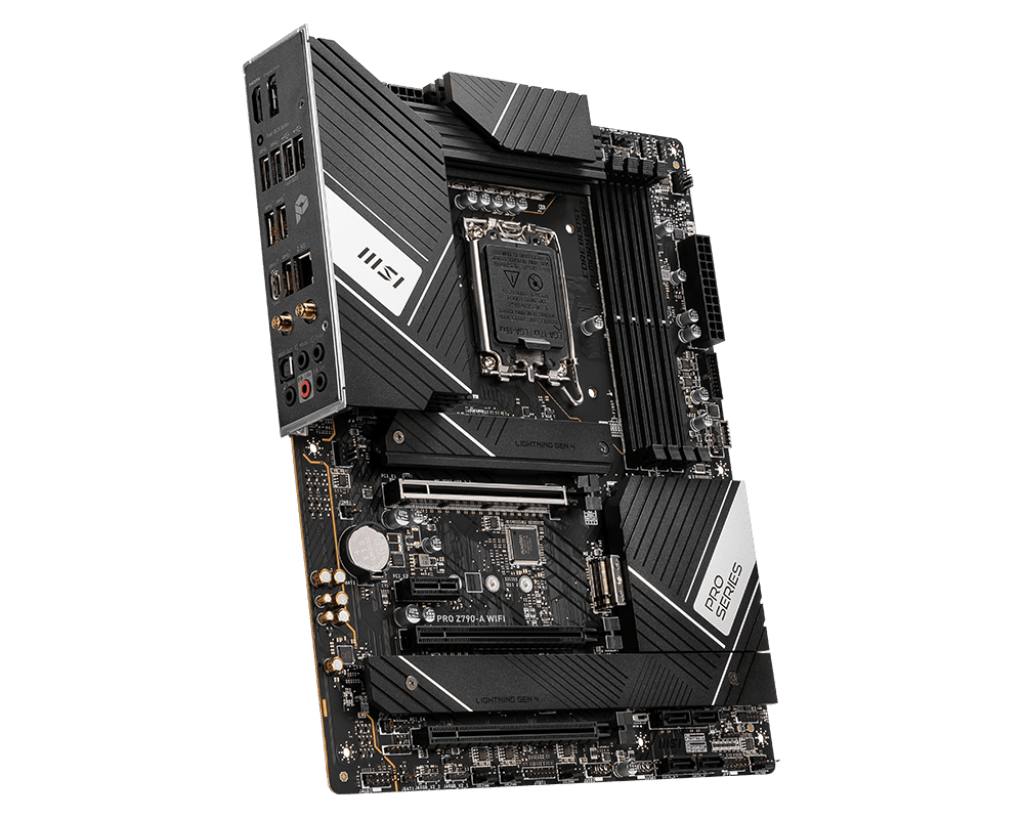

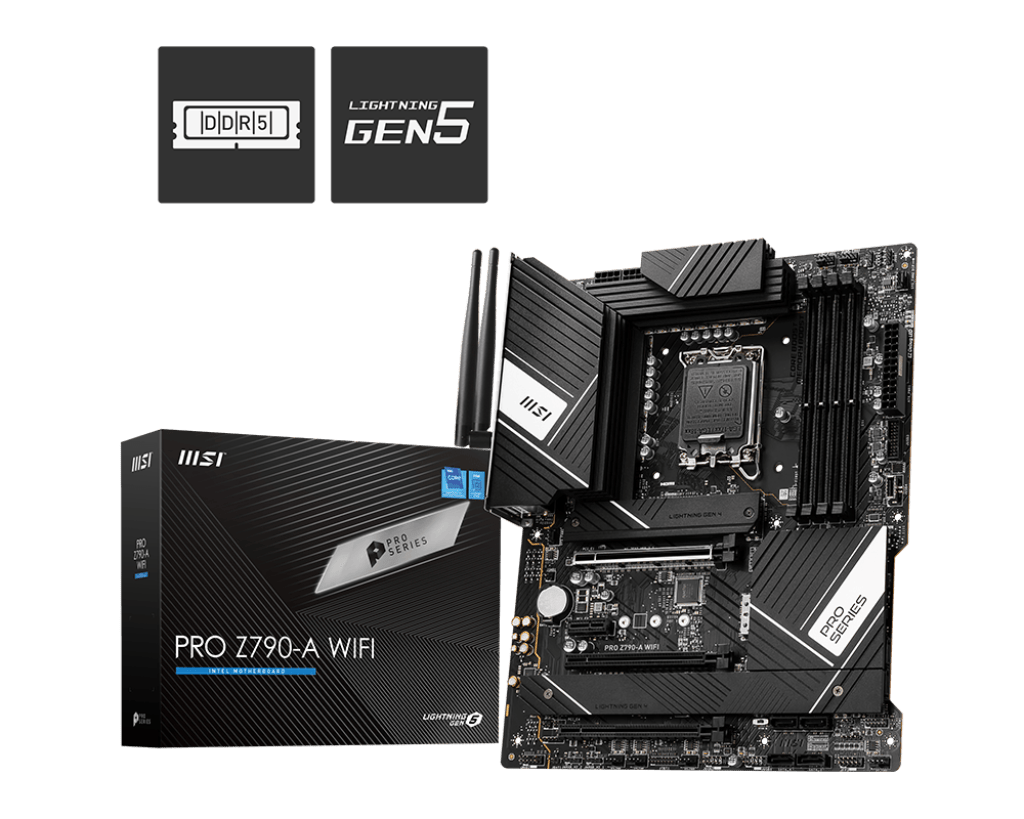

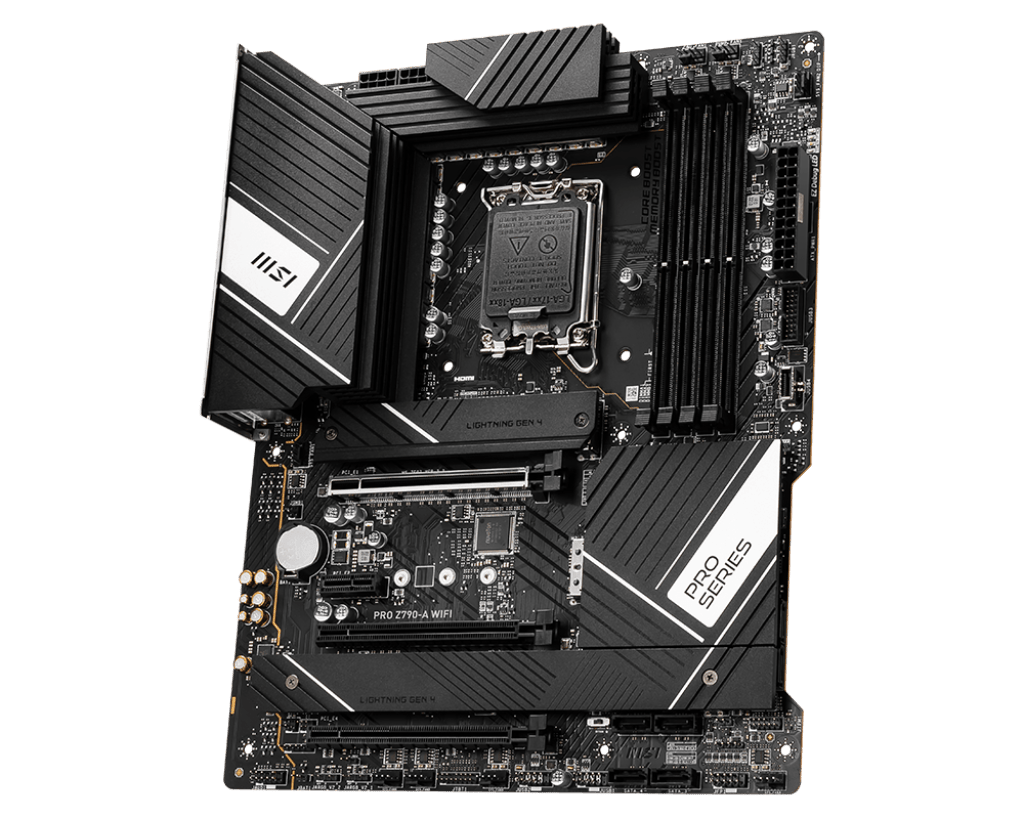

MSI Pro Z790-A wifi
390.00 USD
MSI Pro Z790-A wifi
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
17
People watching this product now!
Description
MSI Pro Z790-A wifi
| Category | Details |
|---|---|
| Chipset | INTEL Z790 |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Intel® Pentium® Gold, Intel® Celeron® Processors |
| Socket | LGA 1700 |
| Memory | 4× DDR5, up to 256GB |
| Memory Speeds | 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz |
| Max Overclocking Frequency | • 1DPC 1R → up to 7200+ MHz• 1DPC 2R → up to 6600+ MHz• 2DPC 1R → up to 6400+ MHz• 2DPC 2R → up to 5600+ MHz |
| Memory Features | Intel® XMP 3.0 OC, Dual-Controller Dual-Channel, non-ECC unbuffered |
| Onboard Graphics | 1× HDMI™ 2.1 (4K @ 60Hz, HDR)1× DisplayPort 1.4 (8K @ 60Hz)*Requires CPU with integrated graphics |
| Expansion Slots | 3× PCIe x161× PCIe x1 |
| PCIe Lane Sources | PCI_E1: PCIe 5.0 ×16 (CPU)PCI_E2: PCIe 3.0 ×1 (Chipset)PCI_E3: PCIe 4.0 ×4 (Chipset)PCI_E4: PCIe 3.0 ×1 (Chipset) |
| Audio | Realtek® ALC4080, 7.1-Channel USB High Performance Audio, S/PDIF Out |
| Storage | 4× M.2:• M.2_1: PCIe 4.0 ×4 (CPU), 22110/2280/2260/2242• M.2_2: PCIe 4.0 ×4 (Chipset), 2280/2260/2242• M.2_3: PCIe 4.0 ×4 / SATA (Chipset), 2280/2260/2242• M.2_4: PCIe 4.0 ×4 / SATA (Chipset), 2280/2260/22426× SATA 6Gb/s |
| RAID Support | SATA: RAID 0 / 1 / 5 / 10M.2 NVMe: RAID 0 / 1 / 5 / 10 |

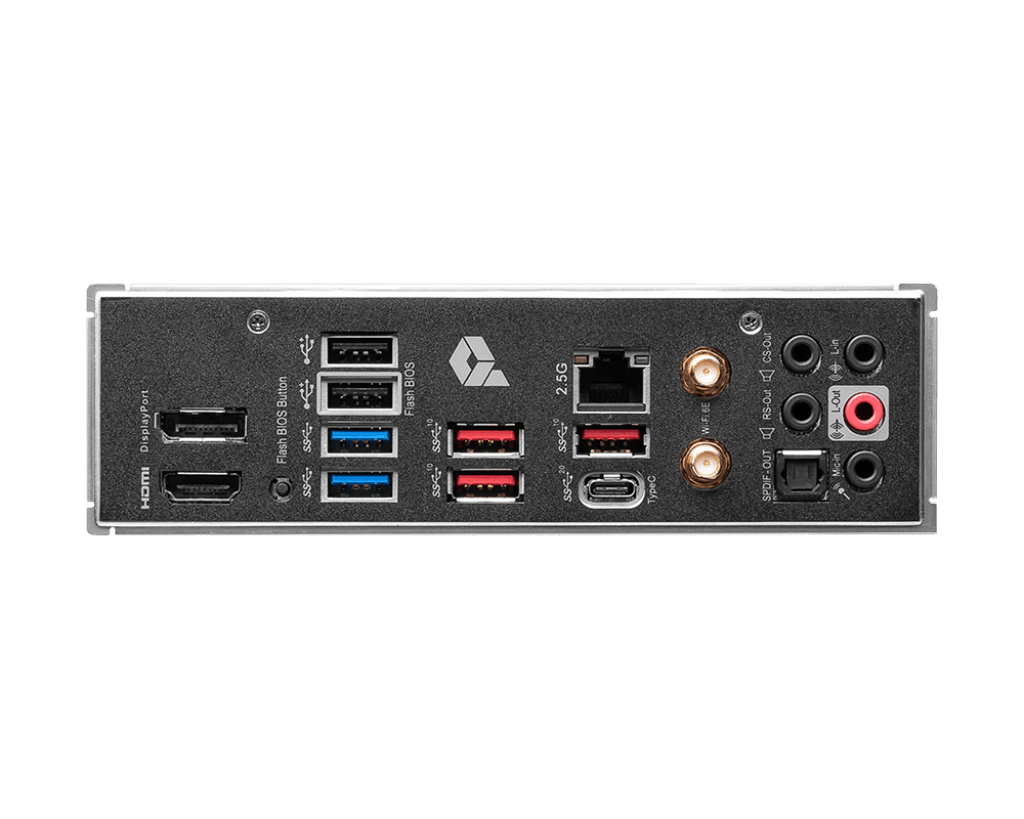

| USB Ports | Rear: 2× USB 2.0, 2× USB 5Gbps Type-A, 3× USB 10Gbps Type-A, 1× USB 20Gbps Type-CFront: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| LAN | Intel® 2.5Gbps LAN |
| Wireless LAN & Bluetooth | Intel® Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps)Bluetooth® 5.3 |
| Internal I/O | 1× ATX_PWR2× CPU_PWR1× CPU Fan1× Pump Fan6× System Fan2× JFP (Front Panel)1× JCI1× JAUD1× JDASH3× JARGB_V21× JRGB1× TPM 2.0 Header4× USB 2.0 Ports2× USB 5Gbps Type-A Ports1× USB 10Gbps Type-C Port |
| LED Feature | 4× EZ Debug LED |
Additional information
| Brand | MSI |
|---|
