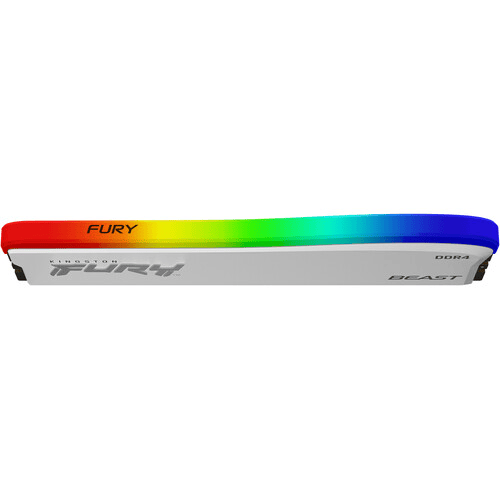

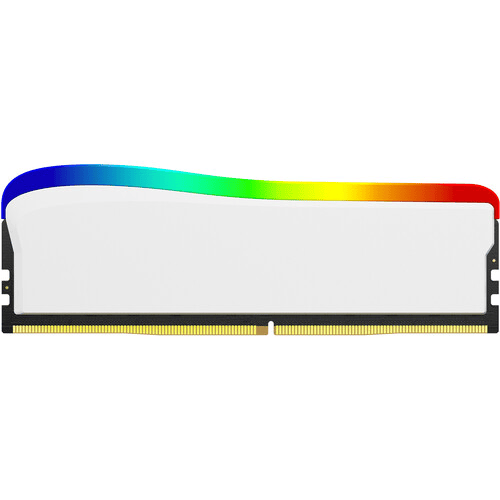

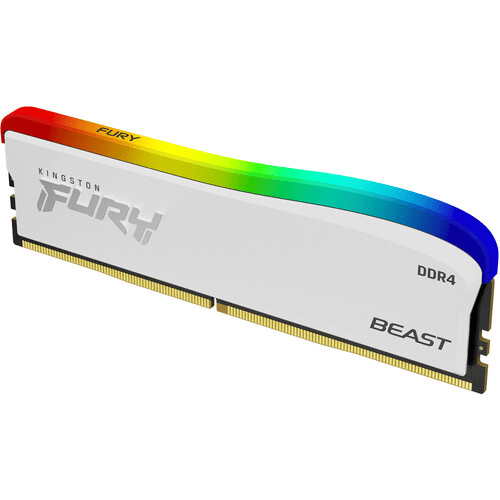

Kingston FURY KF432C16BWA/8 1G x 64-bit (8GB) DDR4-3200 CL16 SDRAM
Kingston FURY KF432C16BWA/8 is a 1G x 64-bit (8GB) DDR4-3200 CL16 SDRAM
13
People watching this product now!
Description
Kingston FURY KF432C16BWA/8 is a 1G x 64-bit (8GB) DDR4-3200 CL16 SDRAM
| Category | Specification |
|---|---|
| CL (IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 45.75 ns (min.) |
| Refresh to Active / Refresh Command Time (tRFCmin) | 350 ns (min.) |
| Row Active Time (tRASmin) | 32 ns (min.) |
| UL Rating | 94 V-0 |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Default Factory Timing (JEDEC) | DDR4-2400 CL17-17-17 @ 1.2 V |
| XMP Profile #1 | DDR4-3200 CL16-18-18 @ 1.35 V |
| XMP Profile #2 | DDR4-3000 CL15-17-17 @ 1.35 V |
| Power Supply (VDD) | 1.2 V Typical |
| Power Supply (VDDQ) | 1.2 V Typical |
| Power Supply (VPP) | 2.5 V Typical |
| Power Supply (VDDSPD) | 2.2 V – 3.6 V |
| On-Die Termination | Supported (ODT) |
| Internal Banks | 16 banks (4 groups × 4 banks) |
| Data Strobe | Bi-Directional Differential Data Strobe |
| Prefetch | 8-bit prefetch |
| Burst Length | BL8 or BC4 (Burst Chop), switch on-the-fly |
| Module Height | 1.80 in (≈45.8 mm) with heatsink |
Additional information
| Brand | Kingston |
|---|
