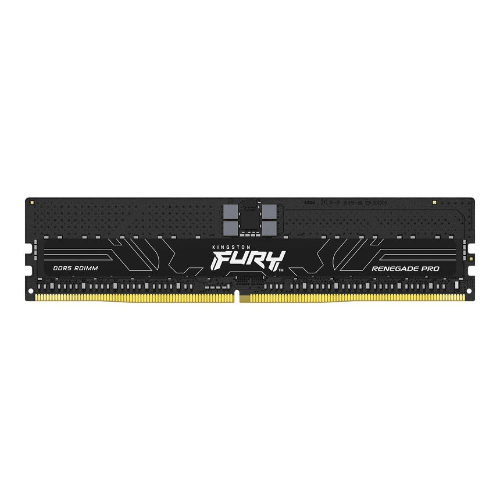

Kingston FURY KF556R36RB-16 2G x 80-bit (16GB) DDR5-5600 CL36 SDRAM
Kingston FURY KF556R36RB-16 2G x 80-bit (16GB) DDR5-5600 CL36 SDRAM
7
People watching this product now!
Description
Kingston FURY KF556R36RB-16 2G x 80-bit (16GB) DDR5-5600 CL36 SDRAM
| Parameter | Specification |
|---|---|
| CAS Latency (CL / IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48 ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295 ns (min.) |
| Row Active Time (tRASmin) | 32 ns (min.) |
| Row Precharge Time (tRPmin) | 16 ns (min.) |
| UL Rating | 94 V–0 |
| Operating Temperature | 0 °C to +95 °C |
| Storage Temperature | –55 °C to +100 °C |
| Power Supply | VDD = 1.1 V Typical, VDDQ = 1.1 V Typical, VPP = 1.8 V Typical, VDDSPD = 1.8–2.0 V |
| ECC / Channels | x80 ECC (x40, 2 independent I/O sub-channels) |
| Internal Banks | 32 |
| Post Package Repair | Hard / Soft |
| Sideband Access | I3C / I2C |
| PCB Height | 1.23” (31.25 mm) |
| Compliance | RoHS Compliant, Halogen-Free |
| On-Die ECC | Yes |
Additional information
| Brand | Kingston |
|---|
