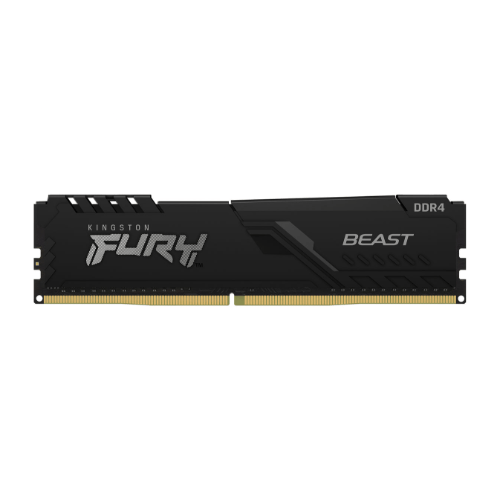

Kingston KF426C16BB/8 FURY Beast 8GB 288p CL16 8C 1024×8 PC4-21300 DDR4-2666 1Rx8 1.2V NON-ECC
Kingston KF426C16BB/8 FURY Beast 8GB 288p CL16 8C 1024×8 PC4-21300 DDR4-2666 1Rx8 1.2V NON-ECC
9
People watching this product now!
Description
Kingston KF426C16BB/8 FURY Beast 8GB 288p CL16 8C 1024×8 PC4-21300 DDR4-2666 1Rx8 1.2V NON-ECC
| Category | Parameter | Specification |
|---|---|---|
| Timing | CL (IDD) | 16 cycles |
| Timing | Row Cycle Time (tRCmin) | 45.75 ns (min.) |
| Timing | Refresh to Active/Refresh Command Time (tRFCmin) | 260 ns (min.) |
| Timing | Row Active Time (tRASmin) | 29.25 ns (min.) |
| Compliance | UL Rating | 94 V-0 |
| Temperature | Operating Temperature | 0°C to +85°C |
| Temperature | Storage Temperature | −55°C to +100°C |
| Power | VDD | 1.2 V (Typical) |
| Power | VDDQ | 1.2 V (Typical) |
| Power | VPP | 2.5 V (Typical) |
| Power | VDDSPD | 2.2 V to 3.6 V |
| Features | On-Die Termination (ODT) | Supported |
| Architecture | Internal Banks | 16 banks (4 groups × 4 banks each) |
| Architecture | Data Strobe | Bi-Directional Differential |
| Architecture | Pre-fetch | 8-bit |
| Architecture | Burst Length (BL) | BL8 or BC4 (Burst Chop), switchable on-the-fly |
| Mechanical | Module Height | 1.34″ (34 mm), with heatsink |
Additional information
| Brand | Kingston |
|---|
