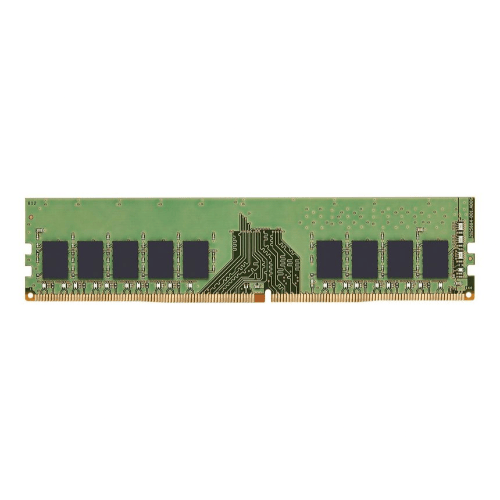

Kingston KSM32ES8/16MF 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM
Kingston KSM32ES8/16MF 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM
14
People watching this product now!
Description
Kingston KSM32ES8/16MF 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM
| Category | Specification |
|---|---|
| CAS Latency (CL / IDD) | 22 cycles |
| Row Cycle Time (tRCmin) | 45.75 ns (minimum) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350 ns (minimum) |
| Row Active Time (tRASmin) | 32 ns (minimum) |
| Maximum Operating Power | Not specified |
| UL Rating | 94 V-0 |
| Operating Temperature | 0 °C to +85 °C |
| Storage Temperature | −55 °C to +100 °C |
| Power Supply (VDD) | 1.2 V Typical |
| Power Supply (VDDQ) | 1.2 V Typical |
| Power Supply (VPP) | 2.5 V Typical |
| VDDSPD Range | 2.2 V – 3.6 V |
| On-Die Termination (ODT) | Nominal and dynamic ODT for data, strobe, and mask signals |
| Low-Power Feature | Low-Power Auto Self Refresh (LPASR) |
| Data Bus Feature | Data Bus Inversion (DBI) |
| Reference Voltage | On-die VREFDQ generation and calibration |
| Rank Configuration | Single-rank |
| SPD EEPROM | On-board I²C Serial Presence-Detect (SPD) EEPROM |
| Temperature Sensor | Integrated with SPD |
| Internal Banks | 16 internal banks (4 groups × 4 banks) |
| Burst Modes | Burst Chop (BC4) and Burst Length (BL8) |
| Burst Selection | Selectable BC4 or BL8 on-the-fly (OTF) |
| Topology | Fly-by topology |
| Bus Termination | Terminated control, command, and address bus |
| PCB Height | 1.23″ (31.25 mm) |
| Compliance | RoHS compliant, Halogen-free |
Additional information
| Brand | Kingston |
|---|
