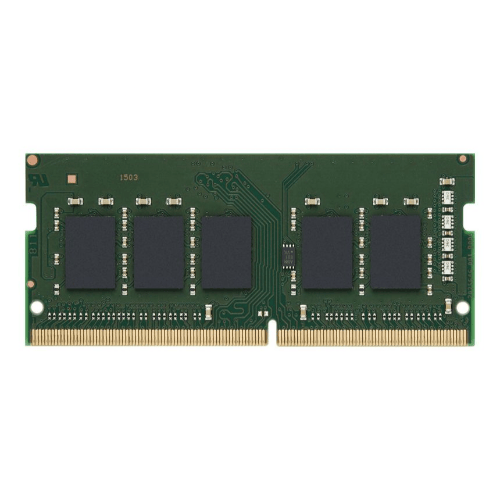

Kingston KSM32SES8/16MF 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM
Kingston KSM32SES8/16MF 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM
8
People watching this product now!
Description
Kingston KSM32SES8/16MF 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM
| Category | Specification |
|---|---|
| CAS Latency (CL / IDD) | 22 cycles |
| Row Cycle Time (tRCmin) | 45.75 ns (min) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350 ns (min) |
| Row Active Time (tRASmin) | 32 ns (min) |
| Maximum Operating Power | Not specified |
| UL Rating | 94 V-0 |
| Operating Temperature | 0 °C to +85 °C |
| Storage Temperature | −55 °C to +100 °C |
| Power Supply (VDD) | 1.2 V |
| Power Supply (VDDQ) | 1.2 V |
| Power Supply (VPP) | 2.5 V |
| VDDSPD Range | 2.20 V – 3.60 V |
| Memory Type | DDR4 SDRAM |
| Internal Banks | 16 banks |
| Bank Grouping | Supported; tCCD_L and tCCD_S for same/different bank groups |
| Supported Data Rates | PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 |
| Data Strobe | Bi-directional differential |
| Prefetch | 8-bit |
| Burst Length Options | BL8 or BC4 (Burst Chop), selectable on-the-fly |
| ECC Support | Error detection and correction supported |
| On-Die Termination (ODT) | Supported |
| Temperature Sensor | Integrated with SPD |
| Addressability | Per-DRAM addressability supported |
| Internal Vref DQ | Generation available |
| Write CRC | Supported at all speed grades |
| CA Parity Mode | Command/Address parity supported |
| Compliance | RoHS compliant and Halogen-Free |
Additional information
| Brand | Kingston |
|---|
