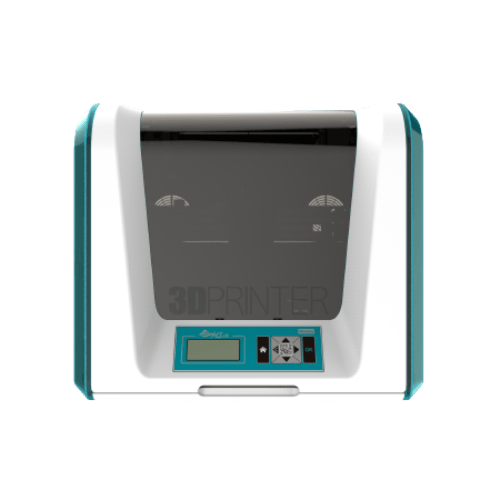

Da Vinci Jr. 1.0 w 3D Printer

Da Vinci Jr. 1.0 w 3D Printer

• Printing Properties
  • Print Technology
    FFF(Fused Filament Fabrication)
  • Max. Build Area (WxDxH)
    5.9″ x 5.9″ x 5.9″ (150 x 150 x 150 mm)
  • Layer Resolution
    100 – 400 microns
  • XY Positioning Precision
    X/Y 12.5 micron
  • Z Positioning Precision
    Z: 0.0004 mm
  • Printing Software
    XYZ maker Suite
  • Supported File Formats
    .stl, .3mf, .obj, .igs, .stp, .ply, .amf, XYZ Format (.3w), .nkg(.stl)
  • 3D Builder Support
    YES
  • Max. Moving Speed
    Max. 120 mm/s
• Material
  • Material Compatibility
    PLA / Antibacterial PLA / PETG / Tough PLA
  • Filament Diameter
    1.75 mm
• Extruder (Standard)
  • Nozzle Diameter

    0.4 mm (0.3 mm Option)

    *0.3mm nozzle does not support PETG.

  • Number of Nozzles
    1
• Print Bed
  • Print Bed
    Non-removable Glass
  • Leveling
    AUTO
• Hardware
  • Stepper Motors
    1.8? HB Stepper Motors
  • User Interface
    2.6″ LCM
  • Language
    Multilingual
  • Connectivity
    USB 2.0 Cable, Wi-Fi 802.11 b/g/n, SD Card
• System Requirements
  • Operating Systems

    Windows 7 / 8 / 8.1 / 10 (64 bits)
    macOS 10.12 / 10.13 / 10.14

  • Operating Systems on Mobile Devices
    Android 5.0 and above
    iOS 9 and above (iPad Only)
  • Minimum Hardware Requirements
    For PC: CPU 4th Generation Intel? Core? i5 Processor or more / RAM: 8GB/ Hard disk space: 20GB or more
    For MAC: RAM: 8GB / Hard disk space: 20GB or more
• Operating Requirements
  • Power Requirements
    100V ~ 240V 12V/60W
  • Operating Temperature
    15 ~ 32 ?C / 59 ~ 89.6 ?F
  • Operation Humidity
    30 ~ 60 % RH (no condensation)
  • Storage Temperature-Filament
    10 ~ 40 ?C / 50 ~ 104 ?F
• Size & Weight
  • Product Dimensions (WxDxH)
    16.54″ x 16.93″ x 14.96″ (420 x 430 x 380 mm)
  • Product Weight
    12 kg (26.46 lbs)
  • Packed Dimensions (WxDxH)
    19.88″ x 23.15″ x 18.7″ (505 x 588 x 475 mm)
  • Packed Weight
    15 kg (33.07 lbs)
