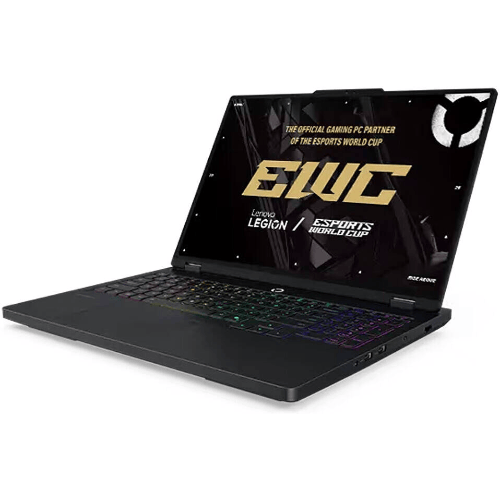

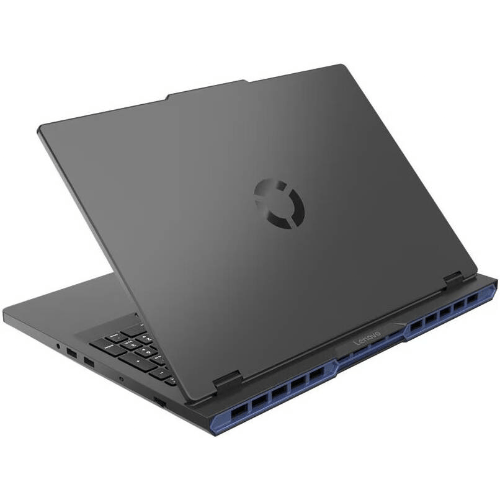

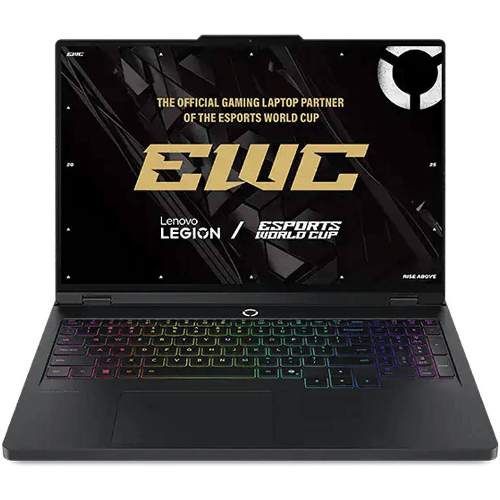

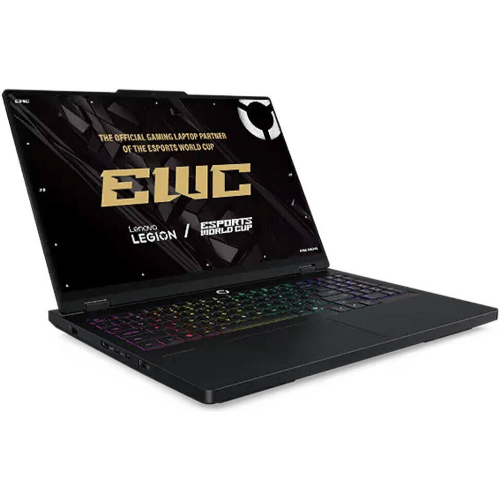

Lenovo Legion Pro 5 16IAX10 16″ WQXGA Core Ultra 7 255HX 32GB-1TB SSD RTX5070 Win11
1,725.00 USD
Lenovo Legion Pro 5 16IAX10 16″ WQXGA Core Ultra 7 255HX 32GB-1TB SSD RTX5070 Win11
- Processor: Intel Core Ultra 9 275HX
- RAM: 32GB DDR5 RAM
- Storage: 1tb SSD nvme
- Graphics: GeForce RTX 5060 8GB
- Display: 16″ WUXGA IPS 240Hz
- OS: Windows 11 Home
Lenovo Legion Pro 5 16IAX10 16″ WQXGA Core Ultra 7 255HX 32GB-1TB SSD RTX5070 Win11
| PERFORMANCE | |
| Processor |
Intel Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB |
| AI PC Category |
AI-Powered Gaming PC |
| NPU |
Integrated Intel AI Boost, up to 13 TOPS |
| Graphics |
NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 105W, 572 AI TOPS |
| Chipset |
Intel HM870 Chipset |
| Memory |
2x 16GB SO-DIMM DDR5-5600 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 32GB DDR5-5600 offering |
| Storage |
1TB SSD M.2 2242 PCIe 4.0×4 NVMe |
| Storage Slot |
Two M.2 2280 PCIe 4.0 x4 slots |
| Max Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each |
| Optical |
None |
| Card Reader |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek ALC3306 codec |
| Speakers |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Microphone |
2x, Array |
| Camera |
5.0MP with E-shutter |
| Battery |
80Wh |
| Power Adapter |
245W Slim Tip (3-pin) |
| Special Features |
AI Chip: LA3 |
| DESIGN | |
| Display |
16″ WQXGA (2560×1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR 400, Dolby Vision, G-SYNC, Low Blue Light, High Gaming Performance |
| Touchscreen |
None |
| Screen-to-Body Ratio |
91.7% AAR (active area ratio) |
| Color Calibration |
Factory Color Calibration |
| Pen |
Pen Not Supported |
| Keyboard |
24-Zone RGB Backlit, English |
| Touchpad |
Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Dimensions (WxDxH) |
364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches) |
| Weight |
Around 2.45 kg (5.4 lbs) |
| Case Color |
Storm Grey |
| Case Material |
Aluminium (Top), PC-ABS (Bottom) |
| Surface Treatment |
Anodizing Sandblasting |
| SOFTWARE | |
| Operating System |
Windows 11 Home, English |
| Bundled Software |
Office Trial + Lenovo AI Now |
| CONNECTIVITY | |
| WLAN + Bluetooth |
Wi-Fi 7, 802.11be 2×2 + BT5.4 |
| WWAN |
Non-WWAN |
| Ethernet |
100/1000M (RJ-45) |
| Standard Ports |
2x USB-A (USB 5Gbps / USB 3.2 Gen 1) |
| 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On | |
| 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort 2.1 | |
| 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with DisplayPort 2.1 | |
| 1x HDMI 2.1, up to 8K/60Hz | |
| 1x Headphone / microphone combo jack (3.5mm) | |
| 1x Ethernet (RJ-45) | |
| 1x Power connector | |
